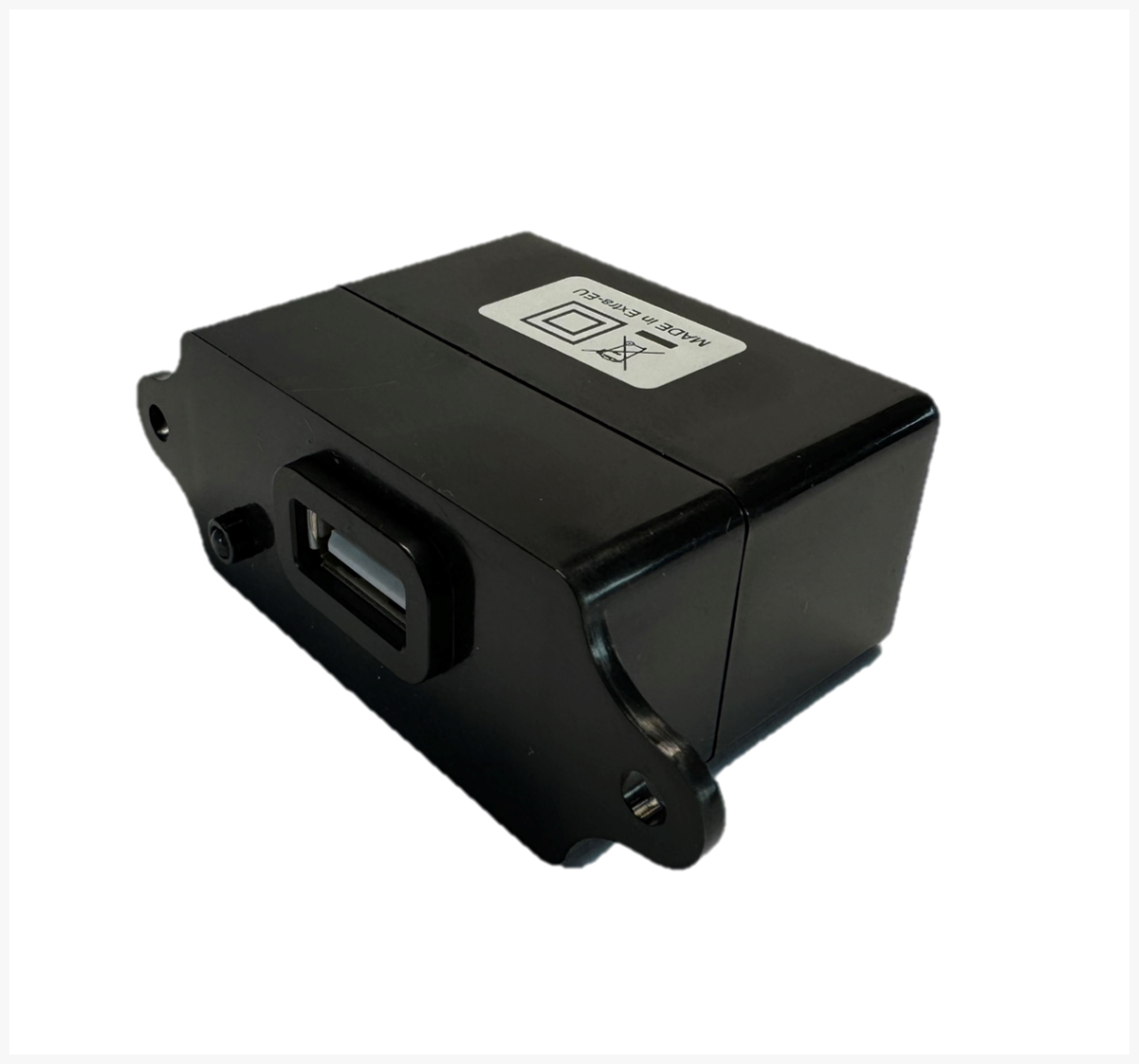

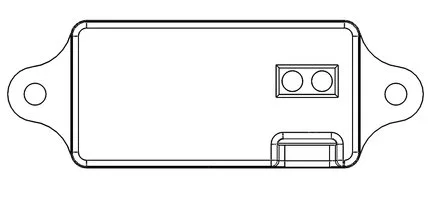

USB Charging Socket

Basic Informaiton

Product name

USB Charing Socket

Application Industry

Railway

Weight of product

0.02 KGS

Dimension

450X570X260 mm

Parameter of socket

5A @ 2.1V, 12W MAX

Type of Rail

High-speed train

Component of railway

Seat charging socket

Special process applied

Plastic injection molding
Polycarbonate SABIC EX9332T

Material

More Information

Products Family

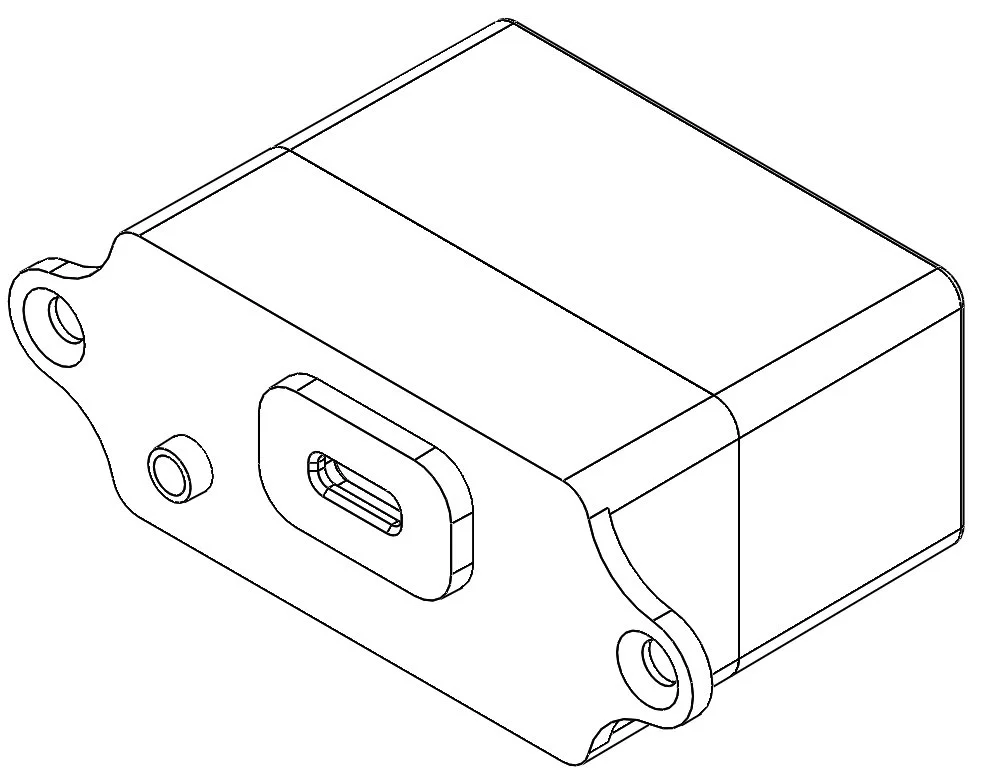

Recharge Socket USB-C 5V 2.1A

SOCKET STANDARD: USB TYPE C
INPUT POWER SUPPLY: UNIVERSAL RANGE 110-230Vac - 50-60Hz
SURFACE FINISHING : MATT FINISHING
OUTPUT POWER SUPPLY: 5Vdc - 2.4A MAX

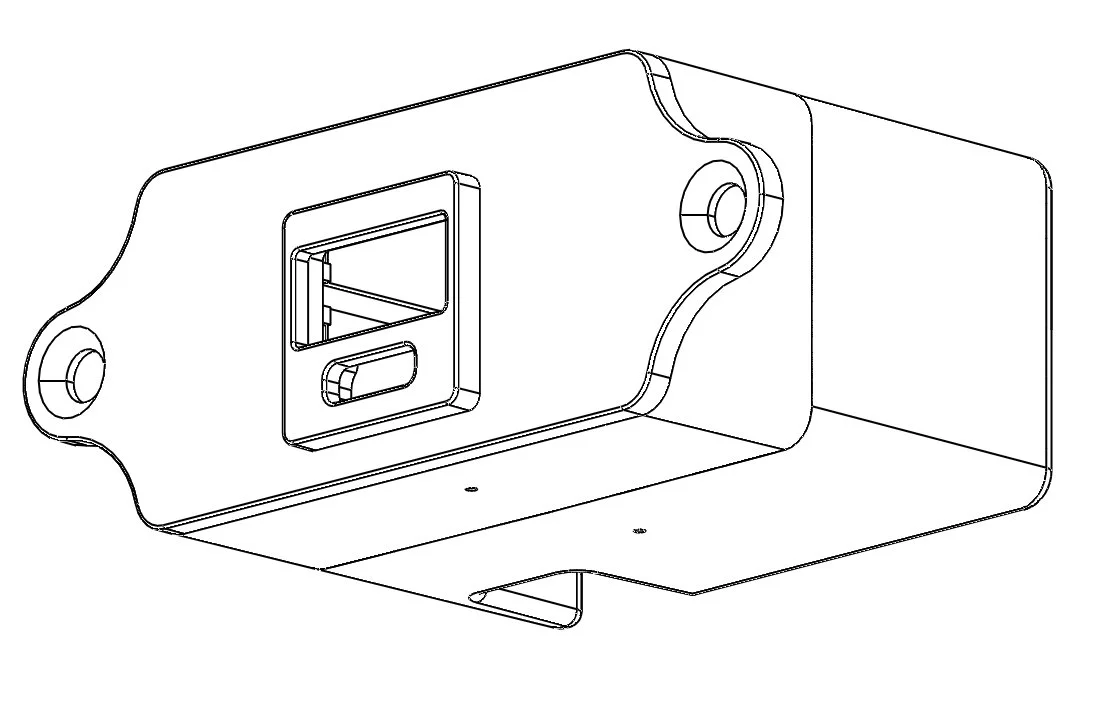

Recharge Socket USB-A+C 5V 2.1A

SOCKET STANDARD: USB TYPE A+C
INPUT POWER SUPPLY: UNIVERSAL RANGE 110-230Vac - 50-60Hz
SURFACE FINISHING : MATT FINISHING
OUTPUT POWER SUPPLY: 5Vdc - 2.4A MAX

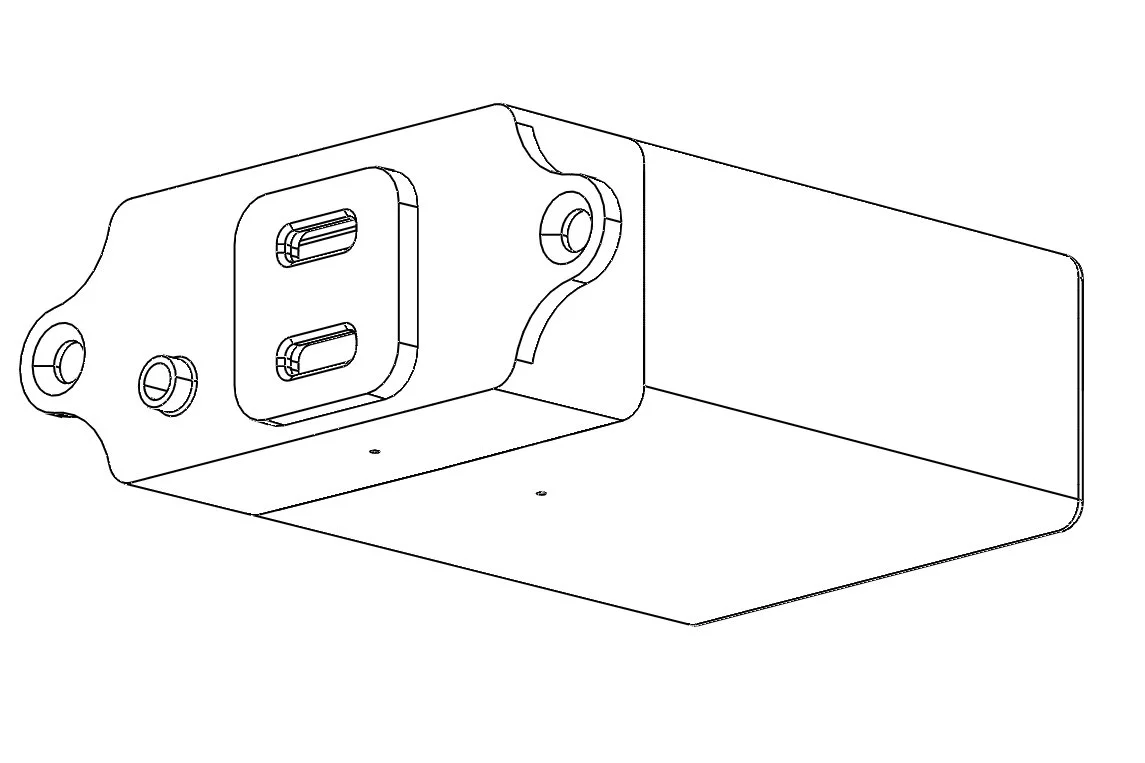

Recharge Socket Double 2x USB‐C 230V

SOCKET STANDARD: USB TYPE DOUBLE C
INPUT POWER SUPPLY: UNIVERSAL RANGE 110-230Vac - 50-60Hz
SURFACE FINISHING : MATT FINISHING
OUTPUT POWER SUPPLY: 5Vdc @ 4.5A MAX
PD3.0 Charging protocol
