Pressure Die Casting

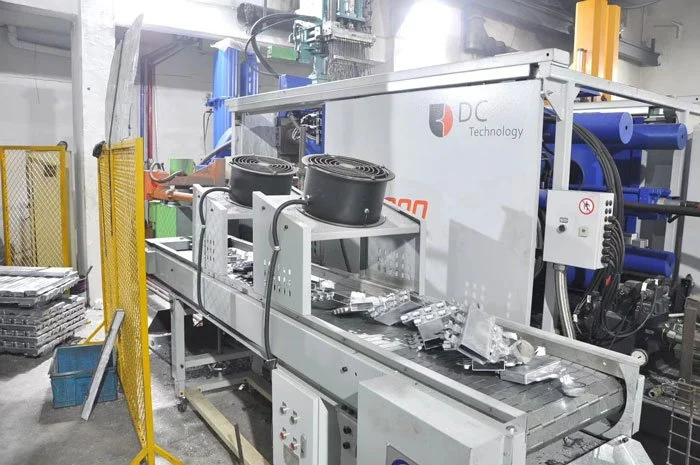

Pressure die casting is a type of die casting method that makes use of a metal mold (usually made from premium, heat-resistant steel grades) into which a non-ferrous metal, such as aluminum, zinc, lead, magnesium, copper, or tin, is injected or introduced. This process involves forcing molten metal under pressure and high velocity into a mold cavity (die) that is machined into the desired shape.
Advantages of Pressure Die Casting
It enables the casting of complex shapes with intricate details and thin walls.It has less waste compared to other fabrication methods that involve material removal.While the initial setup and tooling costs can be high, the per-unit cost significantly decreases for large production runs, making it cost-effective for mass production. Ideal for high-volume manufacturing. Parts produced with high precision and consistent dimensions.Castings have a smooth surface directly out of the mold.The process can achieve tight tolerances.It can produce large quantities of parts in a short time frame.
Pressure Die Casting Process
1. Mold Design
The initial step in the die casting process is creating a mold called a die. This mould is usually made from steel or aluminium and is designed to withstand the high temperatures and pressures of the die casting process. 2. Material Preparation
This metal is typically an alloy, such as aluminium, magnesium, or zinc. The metal is melted in a furnace and then poured into a ladle.3. Injection Process
Once the metal is in a liquid state, it is injected into the mould under high pressure. The molten metal fills the mould cavity and cools to create the desired shape.4. Casting Process
After the metal has cooled and hardened, the mould is opened, and the part is ejected. Ensure that the part has cooled entirely before handling to avoid any potential injuries.5. Finishing Process
The final step in the process is to finish the part. Surface finishing plays a vital role in die casting, as it can impact the durability and function of the part. Standard finishing processes include anodizing, powder coating, wet plating, and many more.
Die Casting Materials and Metal Alloys
Aluminum Die Casting
Aluminum is among the most popular metals used for die casting due to its ability to handle high temperatures while maintaining strength and lightweight. Aluminum die-casts are conductive and corrosion-resistant.
Zinc Die Casting
Zinc is a heavier metal that provides robust characteristics to die cast parts. It offers a unique combination of impact strength, resistance to catastrophic failure, and ductility, making it a good choice for a wide range of applications.
